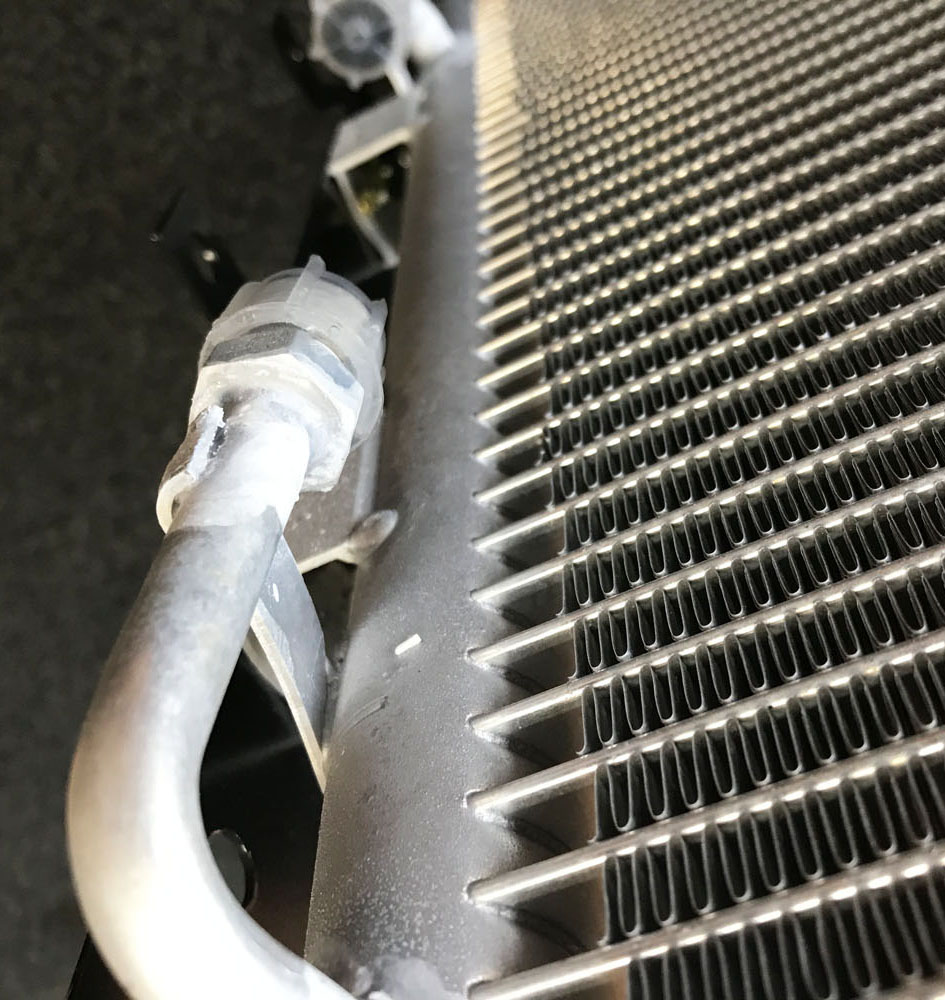

AC condenser for Volvo 240 series from 1986 through 1990 sedans and station wagons.

This R-134 Freon gas compatible condenser upgrade has:
A parallel flow aluminum core.
Quality rigid design and materials.
Condenser mounting brackets at both ends of the assembly.

The Inlet and the outlet port are FACING each other. This is an updated design AC condenser featuring the latest automobile air conditioning industry trends.

This is a MUST HAVE component when converting a Volvo 240 R-12 gas filled air conditioning system to a R 134 Freon gas compatible system. R-12 filled AC systems are found on the earlier Volvo 240 models.

Air conditioner AC low pressure line from receiver drier to compressor on Volvo 240 series made from 1990 through 1993 sedans and station wagons.
Line connects at the receiver drier by the firewall and to the discharge ( D) port at the compressor . Number 8 on the diagram. Replaces part numbers 9432505 3540604
This is a MUST HAVE component when repairing R-134 gas filled Air conditioning system of your Volvo 240 series

Condenser new for
Volvo 240 1975-1985 2.1L,
Volvo 260 1976-1982, OEM style with serpentine core

Air conditioner AC rigid line suction line from condenser to junction point with flexible line on Volvo 240 series made from 1990 through 1993 sedans and station wagons.
Pipe attaches to the condenser and connects at the junction point by the bottom cross member rail to the flexible line that leads to the ac compressor . Number 6 on the diagram. works for both part numbers 3522882 3540651. Pipe has a provision for the pressure sensor that can be blocked out if the sensor is not used by the system on your particular model.
This is a MUST HAVE component when repairing R-134 gas filled Air conditioning system of your Volvo 240 series

Air conditioner flexible line suction line from junction point to compressor on Volvo 240 series made from 1990 through 1993 sedans and station wagons.
Pipe connects at the junction point by the frame rail to the rigid line , and to the ac compressor . Number 7 on the diagram. Replaces part numbers 3522879 and 3540655
This is a MUST HAVE component when repairing R-134 gas filled Air conditioning system of your Volvo 240 series

AC Air conditioner rigid line from evaporator to junction point for Volvo 240 series made from 1990 through 1993 sedans and station wagons. Number 15 on the diagram.
Expansion orifice tube is installed at the junction point by the frame rail, where a smaller rigid pipe connected .
will work as both part numbers 3522964 or 3540652
This is a MUST HAVE component when repairing R-134 gas filled Air conditioning system of your Volvo 240 series

AC Air conditioner rigid line from junction point to condenser for Volvo 240 series made from 1990 through 1993 sedans and station wagons.
Pipe connects to the expansion orifice tube line at the junction point by the frame rail, and to the ac condenser . Has threaded port for the high pressure sensor. Number 16 on the diagram.
This is a MUST HAVE component when repairing R-134 gas filled Air conditioning system of your Volvo 240 series

AC condenser for Volvo 240 series made from 1991 through 1993 sedans and station wagons.
This R-134 Freon gas compatible condenser upgrade has parallel flow aluminum core .
Quality rigid design and materials . Condenser has 4 mounting brackets ( 2 at each end of the assembly) .
Please note that BOTH , the Inlet and the outlet port of the AC condenser are FACING same direction toward the ground .
This is an updated design AC condenser, that is featuring latest automobile Air conditioning industry trends.
This is a MUST HAVE component when repairing R-134 gas filled Air conditioning system of your Volvo 240 series
