lumbar support wire for Volvo 240 series upper ( BACK REST ) seat frame . The picture is showing 2 springs, you will receive the wire that is 165 mm long ( 6.496 ") there are 2 of the wires in the the lumbar support. Short one and long one ( number is 1359709). When you are restoring your seat - you may need both of them.

Upper Front Seat Lumbar Support short wire Volvo 240 1978-1993
1395708

Seat back recline control knob wheel . Commonly destroyed and missing part at the pivot point of the seat bottom . When the knob is installed in its place you are able to adjust the tilt angle of the of the seat back. The seat back is adjustable - all that you need is to install the knob in its place.
This seat recline control knob will fit all the Volvo 240 models with manual control seats. It will fit all the 700 and 900 series seats with manual controls as well In some cases large dished spring washer is needed to secure the knob in its place. The washer is available on our web site . Please search for the part number LW13179

A must for your seat restoration project - the perfect seat heating pad.
Those who have restored a Volvo seat would know...

One of the most common problems when restoring a vintage Volvo seat is a not working, worn-out or disintegrated heating element. There are only a handful of things that leave much to be desired in your Volvo, and the seat heater was one of them.

Well, no more. Swedish Car Parts presents the 21st century solution to the problem - a completely new design of the seat heating pad with integrated thermostat and temperature-limiter switch. Unlike the old fragile one with individual wires that would break in time, rendering the while "heated seat" feature unusable, these new pads (designed and built by Swedish Car Parts), will not cause such issues. Here's why:
Much larger area means more heat.

The heating grid is woven in such a way that it could be trimmed to fit. You can merely cut a piece out and there will be no contact loss or shortcut. Needless to say, any broken wire (should that happen, which is unlikely) will not affect the pad's performance.

The wires are completely enclosed within the soft pad. They will not entangle and will always remain a particular pattern, giving the most heat. Less movement - less breakage.

The pad itself has adhesive strips that will hold it firmly to the foam cushion. No slipping, no sliding, no wear and no tear.

The pad could be used either in the cushion, or seatback, or both,
We generously left about 2 feet of the power cable, which is supposed to be trimmed to fit. This allows you to place the pad anywhere in the seat.

Because these pads could be used on any model, the plug-in connector is not supplied. Please reuse the old one.

ATTENTION!
Installing heater pads requires a complete disassembling of your seat. It should be done by a trained professional at proper facilities using correct tools.

Works for: Volvo ALL MODELS

PART NUMBER: LW13179

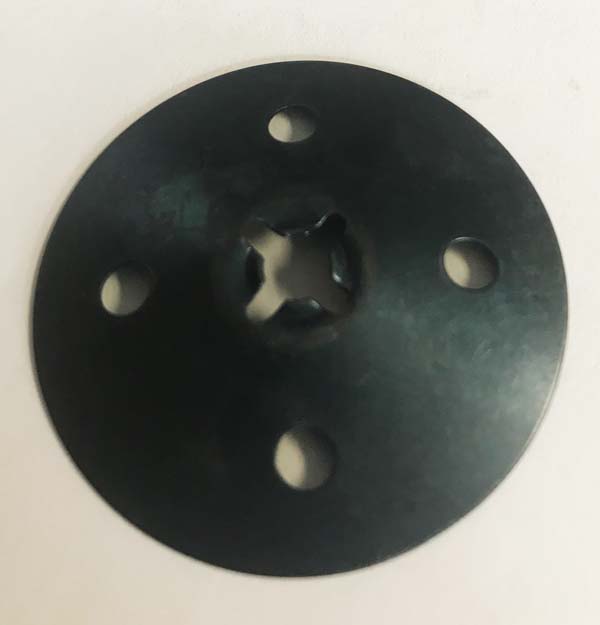

Seat back recline control knob wheel is attached to the seat with one of these large dished spring washers. There is absolutely nothing else that will work in its place . If the seat adjuster wheel is missing at the pivot point of the seat bottom, you will need one of these to attach the new replacement knob back onto the mechanism . When the knob is installed in its place you are able to adjust the tilt angle of the of the seat back. The seat back is adjustable - all that you need is to install the knob in its place.
This seat recline control knob securing washer will fit all the volvo 240 models.

Seat back recline control knob wheel . Beige color . Commonly destroyed because of its age and or missing part at the pivot point of the seat back bottom . When the knob is installed in its place you are able to adjust the tilt angle of the of the seat back. The seat back is adjustable - all that you need is to install the knob in its place.
This seat recline control knob will fit all the Volvo 240 models with manual control seats. It will fit all the 700 and 900 series seats with manual controls as well In some cases large dished spring washer is needed to secure the knob in its place. The washer is available on our web site . Please search for the part number LW13179

Seat back recline control knob wheel . Blue color . Commonly destroyed because of its age and or missing part at the pivot point of the seat back bottom . When the knob is installed in its place you are able to adjust the tilt angle of the of the seat back. The seat back is adjustable - all that you need is to install the knob in its place.
This seat recline control knob will fit all the Volvo 240 models with manual control seats. It will fit all the 700 and 900 series seats with manual controls as well In some cases large dished spring washer is needed to secure the knob in its place. The washer is available on our web site . Please search for the part number LW13179

RE-MANUFACTURED Volvo 240 upper ( BACK REST ) seat frame. .This re-manufactured frame includes new lumbar support spring wires one long and one short. You will need these for complete restoration. Your existing Lumbar support mechanisms can be switched from left to right side of the frames as needed
Re manufactured frame is fitted with a reinforcement bar for added stability

**Since this is an exchange program please return your old seat frame to us . There may be an additional Core charge of : $80 if your original seat frame is not returned to us with in 30 day of purchase**

Questions? Call 773 381 2600 for details.

lumbar support wire for Volvo 240 series upper ( BACK REST ) seat frame . The picture is showing 2 springs, you will receive the wire that is 194 mm long ( 7.638 ") there are 2 of the wires in the the lumbar support. Long one and short one ( number is 1359708). When you are restoring your seat - you may need both of them.

This is an original Swedish Car Parts design of seat webbing support grid for Volvo 240 series (all years). It is a significant improvement over the original Volvo design, which failed because the manufacturer used paper to wrap the metal supports; over time the paper wrap deteriorated allowing the springs and webbing to slide back and forth - leading to broken supports. Our improved design eliminates the paper wrapping and replaces it with plastic tube which minimizes determination, mildew and as well webbing grid movement while still providing the flexing required, maintaining maximum comfort.

Swedish Car Parts is proud to offer you a complete restoration of your worn-out seats! Your old seat will be completely disassembled, inspected, frame re-manufactured, cushions repaired. Then your seat will be re-upholstered with brand new vinyl seat cover, which is a direct match to the original color and texture to Volvo's vinyl seats for the 240 Series. Your choice of color and stitching pattern, or whether hog rings or zip-ties are used.

Prices vary depending on the extent of the seat wear and the amount of work.
This special offer includes reusing old cushions and refitting the seat with a new cover. You may also opt for:
- Replacing/repairing seat support webbing grid
- Repairing seat frame
- Repairing/replacing lumbar support
- Repairing or replacing seat cushions
If desired, a brand new heating element may be installed either in the cushion, or seatback, or both ($30 labor charge +cost of heating element with thermostat)

Works for: Volvo 240/260 (1975 - 1982 and 1980-1993)
Works for: Volvo 240/260 (1975 - 1982 and 1980-1993)
